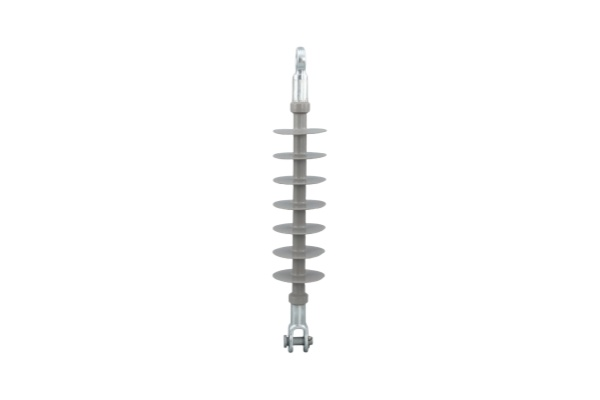

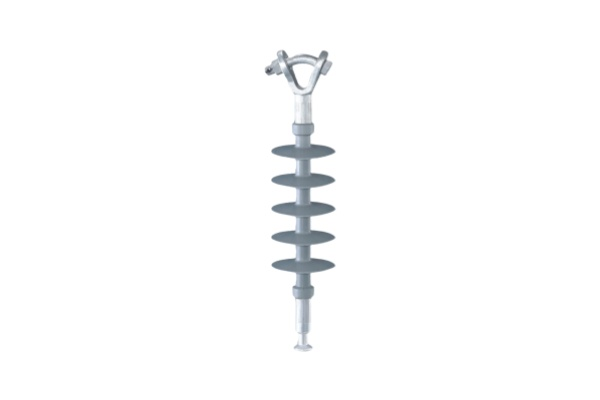

Insulator

An insulator, also known as an electric insulator, is a material that hinders the flow of electric charge. In an insulator, valence band electrons are tightly bound to the atoms around them. This material is used as an insulator in electrical devices, or serves an insulating function. Its role is to support or separate various conductors and prevent current from flowing through.

PRODUCT PARAMETERS

MODEL	HEIGHT (mm)	Creepage distance(mm)	Dry arc distance(mm)	SML(kN)	Power frequency wet withstand voltage(kV)	Lightning impulse withstand voltage(kV)

FP-11/10-300	273	300	190	10	38	95

FP-24/11	277	610	225	11	60	145

FP-33/10-900	390	900	280	10	90	200

FP-33/10-1080	375	1080	400	10	90	20

FPS-15/10	286	410	170	10	45	95
FPS-33/11	555	1080	370	11	95	185
